HTR 0.02 Cyclones and Flues

To prepare coffee beans for market, they are first sent to a dry mill to be hulled and then graded by size and density. Dry processing produces beans that are ready to be roasted, but in order to protect the green beans, millers do not remove the thin, papery layer — called silverskin — that is closely attached to the surface of the beans. During roasting, as the beans expand and rub against one another in the drum, the silverskin loses contact with the beans and is blown out the roaster’s exhaust. Roasters refer to this spent material as chaff, and they need to carefully manage its disposal.

Virtually all commercial roasting machines have a cyclone designed to act as a chaff collector. Cyclones use centripetal forces to separate solids from a spinning column of air. They can remove 96% to 99% of the chaff and larger solid particles from exhaust gases (Fernandes 2019). The small fraction that is not captured in the cyclone goes up the flue. If the flue is not well maintained, the chaff can adhere to its walls, which over time can become sticky with creosote.

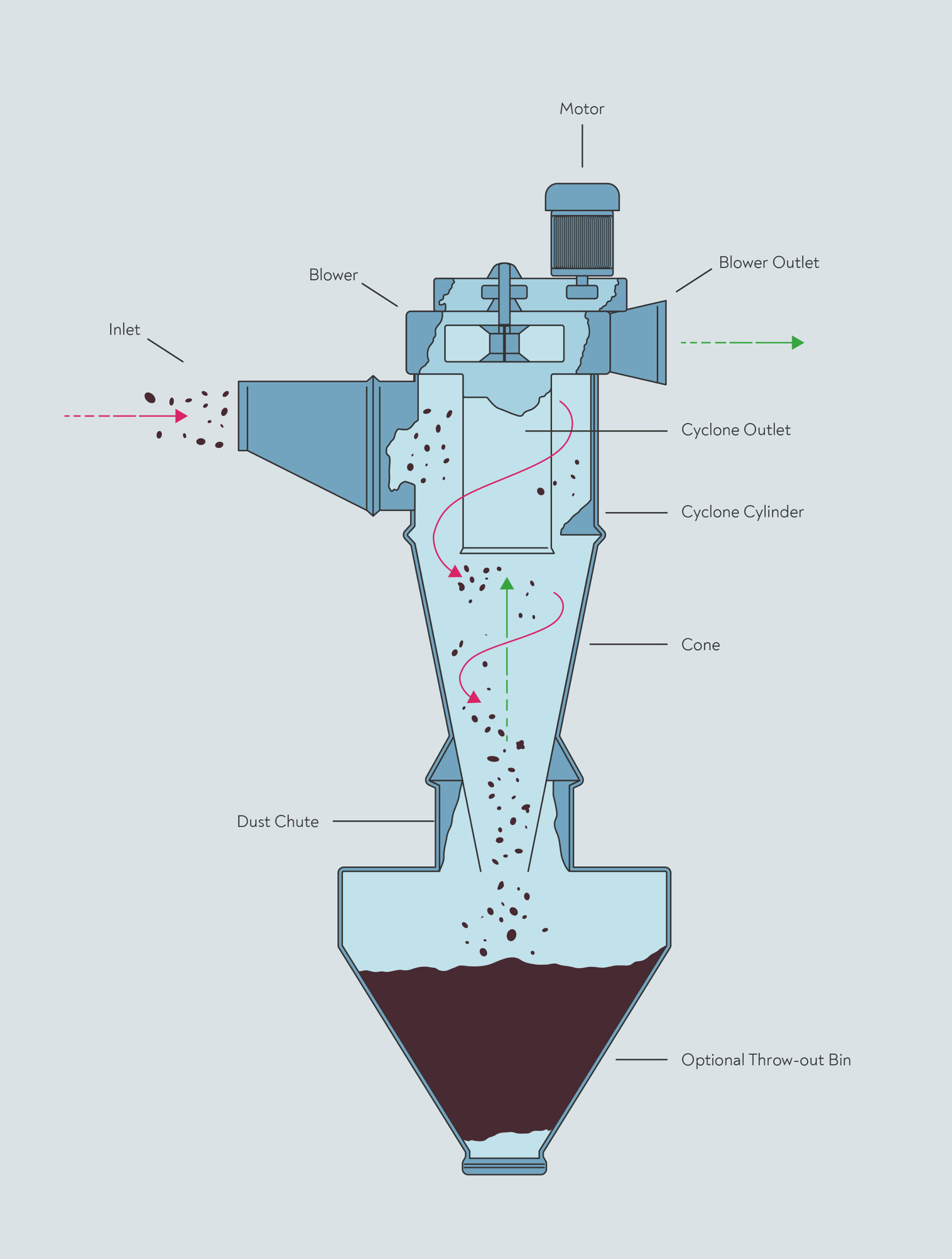

Chaff enters the cyclone via the inlet and spins around the edges of the cyclone chamber’s wall. The cyclone outlet pipe is recessed below the point where the inlet enters, creating a low-pressure system in the lower portion of the cyclone and in the dust chute. This pressure differential drives the chaff downwards while allowing clean air to escape through the blower outlet.



Fire Prevention

Both creosote and chaff are highly flammable, with creosote combusting at temperatures of over 1000°C — that’s hot enough to melt metal flue liners (CSIA 2022). The buildup of chaff and creosote in a roaster flue also has the effect of narrowing the space through which the air can escape. To avoid losses in airflow, it is necessary for roasteries to institute a regular cleaning schedule.
